OPUTE Polyimide High-Temperature Insulation Tape for PCB, SMT & Electronics – Custom Widths & Thicknesses
$0.99

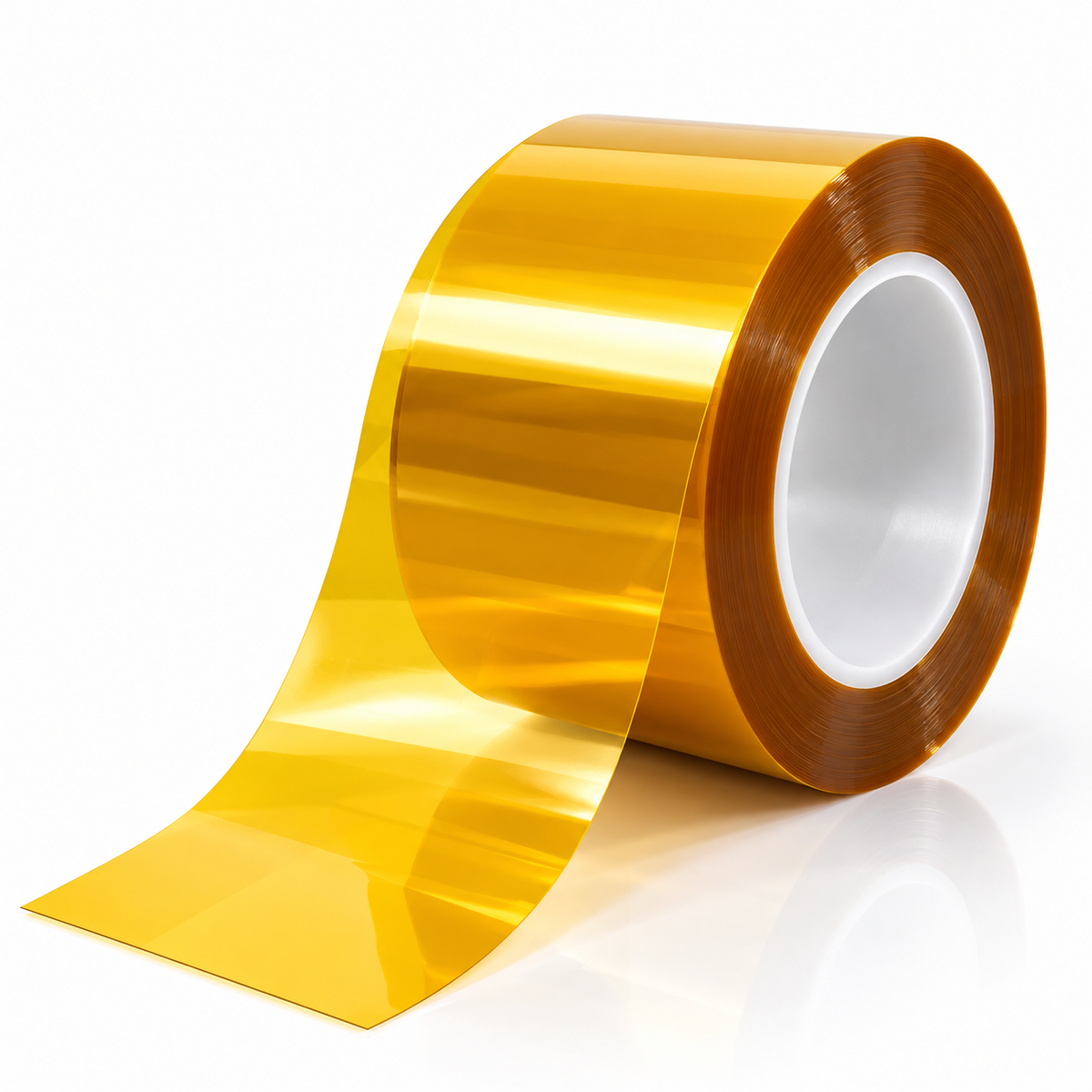

Polyimide High-Temperature Tape
OPUTE Polyimide High-Temperature Tape is designed for high-temperature electronic processing, electrical insulation and precision masking applications. Its smooth film surface supports industrial converting and die-cutting for electronic manufacturing.
15–250
µm Thickness Range
6 kV
Voltage Resistance
280°C
30-Min Heat Test
Custom
Slitting & Die Cutting
Key Features & Benefits
- Resistance to high and low temperatures
- Electrical insulation and high voltage resistance
- Flame-retardant properties stated in the catalog
- Smooth film surface suitable for precision die-cutting
- Uniform matte finish
- Custom widths and thicknesses available
Typical Applications
- Semiconductor wafer processing
- High-temperature SMT reflow applications
- PCB masking and electronic component protection
- Mobile-phone and tablet manufacturing
- Battery wrapping, fixing and encapsulation
- High-temperature and high-voltage cable insulation
Technical Specifications
Typical properties of the catalog reference grade.
| Property | Typical Value | Test Method |
|---|---|---|
| Thickness Range | 15–250 µm | Catalog Specification |
| Total Thickness | 50 µm | GB7125-1998 |
| Film Thickness | 25 µm | GB7125-1997 |
| Adhesion | 400–600 g/25 mm | GB/T2792-1997 |
| Tensile Strength | ≥180 MPa | GB/T1040.3 |
| Elongation at Break | ≤65% | GB/T1040.3 |
| Voltage Resistance | 6 kV | — |
| Heat Resistance | 280°C / 30 min, no adhesive residue | CE-021 |
Available Sizes & Customization
- Thickness Range: 15–250 µm.
- Width: Custom widths available.
- Roll Length: According to customer requirements.
- Processing: Precision slitting and die-cut shapes.
Looking for Customized Polyimide Tape?
OPUTE offers high-temperature polyimide tape for electronics, PCB processing and electrical insulation. Contact us for samples, specifications and quotations.
Request a QuoteNote: Heat resistance represents a short-duration test condition, not continuous operating temperature. Verify performance for the selected grade.
