OPUTE PET High-Temperature Polyester Adhesive Tape for PCB Masking & Powder Coating – Custom Colors & Sizes
$0.99
Skip to product information
OPUTE PET High-Temperature Polyester Adhesive Tape for PCB Masking & Powder Coating – Custom Colors & Sizes
$0.99

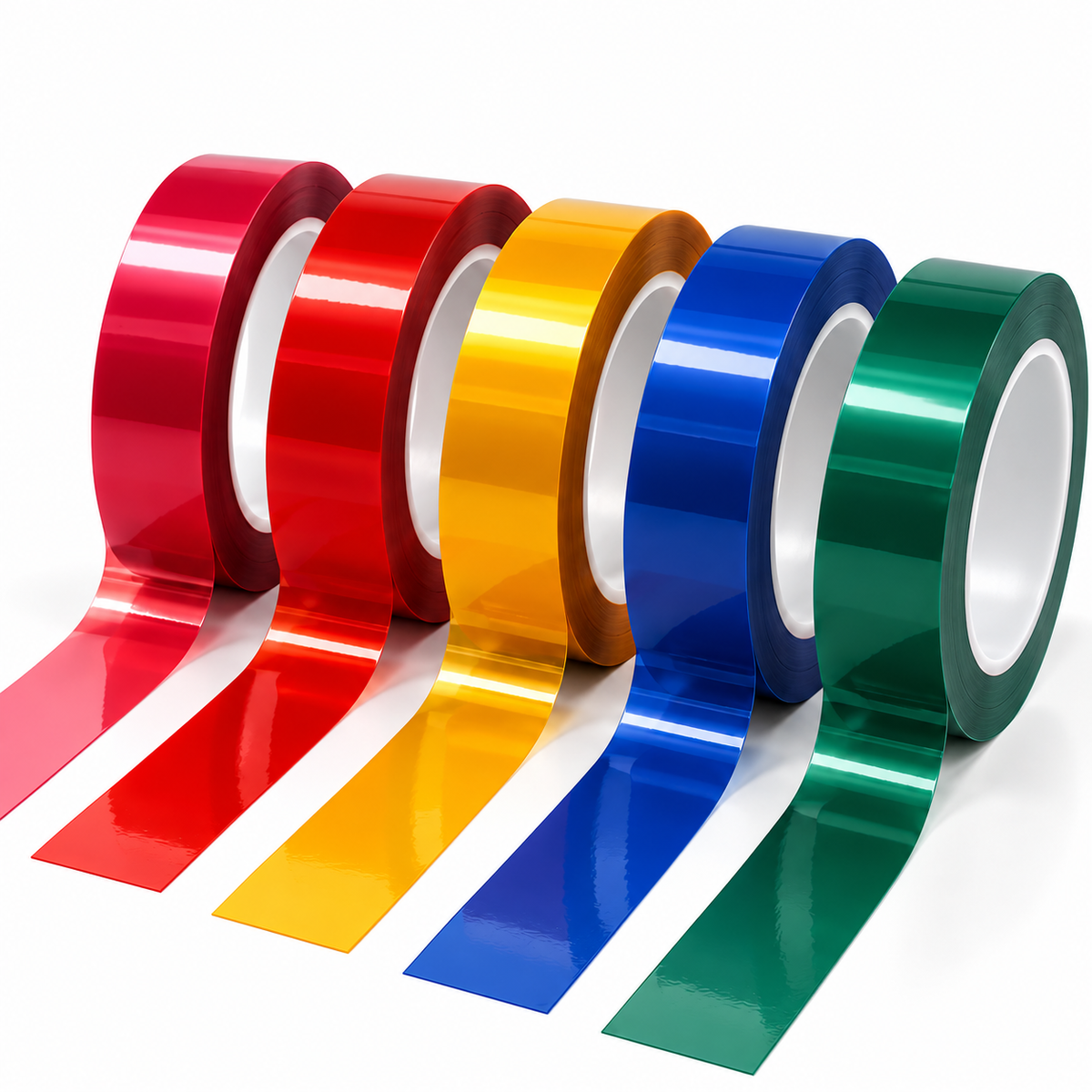

PET High-Temperature Tape
OPUTE PET High-Temperature Tape is a polyester film adhesive tape designed for industrial masking, electrical insulation and surface protection. Available in various colors, thicknesses and custom roll sizes for electronic manufacturing and converting applications.
30–250
µm Thickness Range
6 kV
Voltage Resistance
220°C
30-Min Heat Test
Custom
Colors & Sizes
Key Features & Benefits
- Good flexibility and resistance to breakage and tearing
- Electrical insulation and high voltage resistance
- Smooth film surface suitable for die-cutting
- Uniform matte finish with fewer visible impurities
- Multiple color and thickness options
- Custom widths, lengths and roll sizes available
Typical Applications
- High-temperature masking for coating and powder coating
- PCB processing and gold plating
- Surface protection of metal and plastic components
- Electronic component protection
- LCD screens, mobile-phone lenses and computer housings
- Industrial die-cutting and converting
Technical Specifications
Typical properties of the catalog reference grade.
| Property | Typical Value | Test Method |
|---|---|---|
| Thickness Range | 30–250 µm | Catalog Specification |
| Total Thickness | 60 µm | GB7125-1998 |
| Film Thickness | 36 µm | GB7125-1997 |
| Adhesion | 700–1000 g/25 mm | GB/T2792-1997 |
| Tensile Strength | ≥180 MPa | GB/T1040.3 |
| Elongation at Break | ≤65% | GB/T1040.3 |
| Voltage Resistance | 6 kV | — |
| Heat Resistance | 220°C / 30 min, no adhesive residue | CE-021 |
Available Sizes & Customization
- Thickness Range: 30–250 µm.
- Colors: Multiple colors available; confirm selected options.
- Width & Length: Custom sizes available.
- Processing: Precision slitting and die-cutting.
Looking for Customized PET High-Temperature Tape?
OPUTE offers polyester adhesive tape solutions for masking, insulation and industrial converting. Contact us for custom colors, sizes, samples and quotations.
Request a QuoteNote: Heat resistance represents a 30-minute test condition, not continuous operating temperature. Properties vary by grade.
