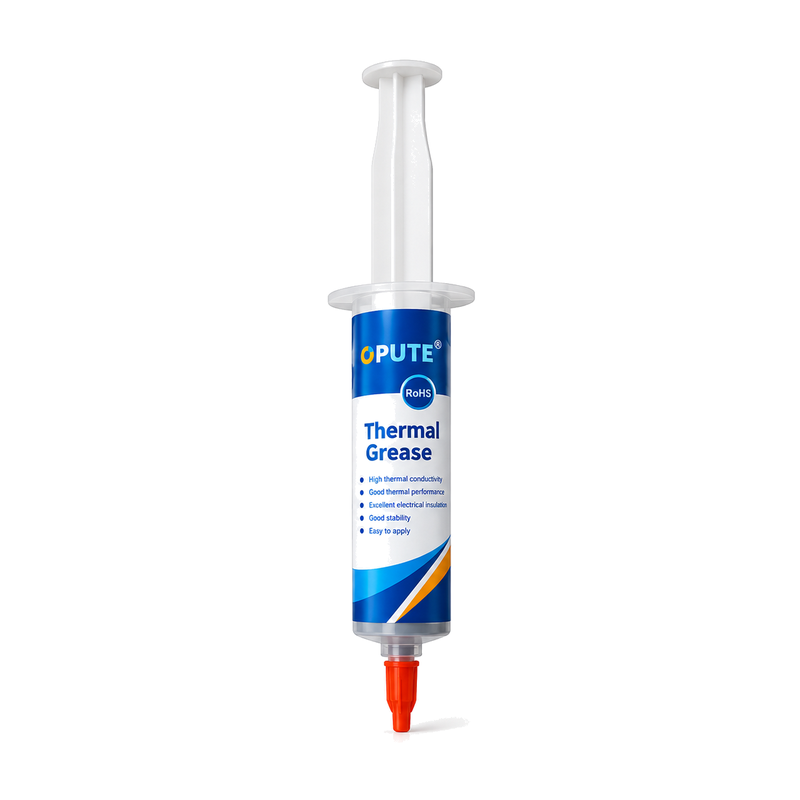

OPUTE 5W/mK Thermal Grease 30g Syringe for IGBT & Power Modules
OPUTE 5W/mK Thermal Grease 30g Syringe for IGBT & Power Modules
TG-50 Thermal Grease
OPUTE TG-50 is a silicone thermal grease designed for efficient heat transfer across thin thermal interfaces in computers and other high-power electronic applications. With a measured thermal conductivity of 4.8 W/m·K and a thermal resistance of 0.05 °C·cm²/W, TG-50 helps fill small gaps between heat-generating components and heat sinks. It offers electrical insulation, water resistance, low oil separation and non-corrosive properties for electronic thermal management applications.
Key Features & Benefits
- Measured thermal conductivity of 4.8 W/m·K for electronic heat dissipation
- Low thermal resistance of 0.05 °C·cm²/W under the stated test conditions
- Designed for effective heat transfer across thin interface layers
- Helps fill small gaps between heat sources and heat sinks
- Electrical insulation properties for electronic assemblies
- Water-resistant silicone grease formulation
- Low oil separation of ≤0.3% after 24 hours at 150°C
- Volatile content of ≤2% after 24 hours at 150°C
- Non-toxic and non-corrosive formulation as described in the product TDS
Typical Applications
- Computer processors and heat sinks
- High-power electronic components inside computers
- Thermal interfaces between heat-generating components and cooling surfaces
- Electronic assemblies requiring electrically insulating thermal grease
- Applications involving thin thermal interface layers
Technical Specifications
Reference properties of OPUTE TG-50 Thermal Grease. Values are based on the TG50 Technical Data Sheet.
| Property | Reference Value | Test Method / Conditions |
|---|---|---|
| Appearance | Gray Paste | Visual Inspection |
| Penetration (Unworked) | 220–240 (0.1 mm) | GB/T 269-1991 |
| Oil Separation | ≤0.3% | 150°C × 24 h / SH/T 0324-1992 |
| Volatile Content | ≤2% | 150°C × 24 h / SH/T 0337-92 |
| Volume Resistivity | ≥1.0 × 10⁸ Ω·cm | GB/T 1692-2008 / Normal Conditions |
| Thermal Conductivity | 4.8 W/m·K | ASTM D5470 / Normal Conditions |
| Thermal Resistance | 0.05 °C·cm²/W | ASTM D5470 / Normal Conditions |
Packaging & Storage
- Standard Packaging: 1 kg per container
- Customized Packaging: Other packaging sizes may be arranged according to customer requirements
- Appearance: Gray grease-like paste
- Storage: Keep sealed in a cool, dry environment
- Shelf Life: 1 year under recommended storage conditions
- Transportation: Non-dangerous goods; transport as general chemicals according to the TDS
Application & Handling Guidelines
- Ensure the application surfaces are clean and dry before applying TG-50.
- Apply the thermal grease to the interface between the heat source and heat sink.
- Keep unused material tightly sealed before returning it to storage.
- Conduct application testing to confirm suitability for the intended assembly.
Looking for a Reliable Thermal Grease Solution?
OPUTE TG-50 is a 5 W/m·K class thermal grease with a measured conductivity of 4.8 W/m·K, designed for computer and high-power electronic thermal interfaces. Contact us for technical specifications, sample inquiries, packaging options and quotation support.
Request a QuoteNote: Technical values are based on the OPUTE TG50 Technical Data Sheet (Revision A/1, December 2, 2022). The information is provided for reference. Customers should conduct appropriate testing to confirm suitability for their specific applications.
