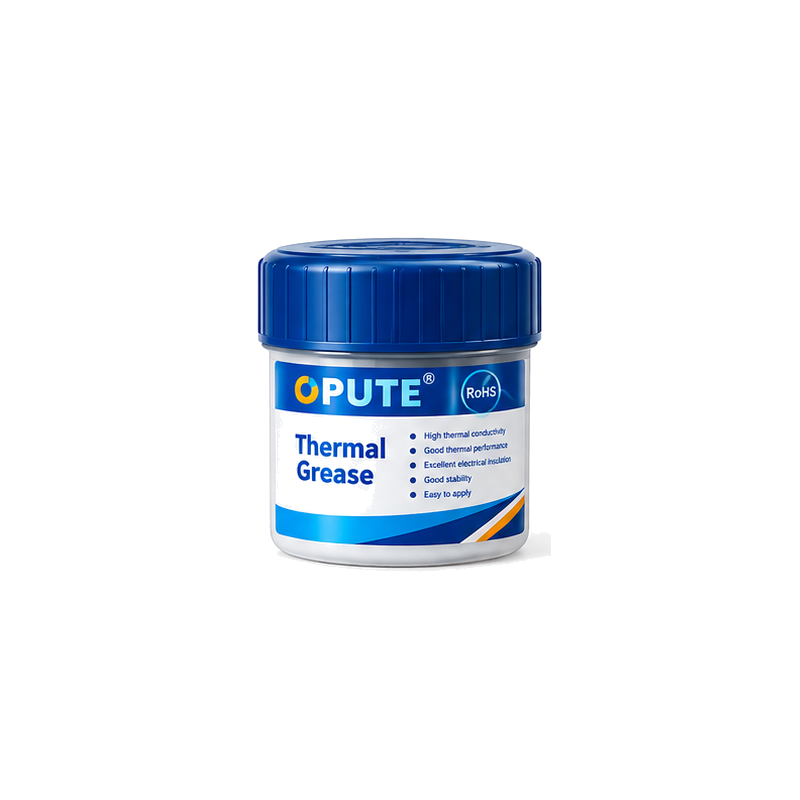

OPUTE 3.5 W/mK Thermal Grease for LED Lighting
OPUTE 3.5 W/mK Thermal Grease for LED Lighting
TG-35 Thermal Grease
OPUTE TG-35 is a high thermal conductivity, low thermal resistance silicone thermal grease designed for efficient heat transfer across thin thermal interfaces. With a measured thermal conductivity of 3.516 W/m·K, it is suitable for LED lighting and industrial electronic applications. TG-35 helps fill small gaps between heat-generating components and heat sinks, providing electrical insulation, water resistance and low oil separation.
Key Features & Benefits
- Measured thermal conductivity of 3.516 W/m·K for electronic heat dissipation
- Low thermal resistance of 0.09 °C·cm²/W under the stated test conditions
- Designed for effective heat transfer across thin interface layers
- Helps fill small gaps between heat sources and heat sinks
- Electrical insulation properties for electronic assemblies
- Water-resistant silicone grease formulation
- Low oil separation of ≤0.5% after 24 hours at 150°C
- Volatile content of ≤0.3% after 24 hours at 150°C
- Non-corrosive formulation as described in the product TDS
Typical Applications
- LED lighting modules and heat sinks
- Industrial electronic equipment
- Thermal interfaces between heat-generating components and cooling surfaces
- Electronic assemblies requiring electrically insulating thermal grease
- Applications involving thin thermal interface layers
Technical Specifications
Typical properties of OPUTE TG-35 Thermal Grease. Values are based on the TG-35 Technical Data Sheet.
| Property | Typical Value | Test Method / Conditions |
|---|---|---|
| Appearance | White Paste | Visual Inspection |
| Penetration (Unworked) | 240–280 (0.1 mm) | GB/T 269-1991 |
| Oil Separation | ≤0.5% | 150°C × 24 h / SH/T 0324-1992 |
| Volatile Content | ≤0.3% | 150°C × 24 h / SH/T 0337-92 |
| Volume Resistivity | ≥1.0 × 10⁸ Ω·cm | GB/T 1692-2008 / Normal Conditions |
| Thermal Conductivity | 3.516 W/m·K | ASTM D5470 / Normal Conditions |
| Thermal Resistance | 0.09 °C·cm²/W | ASTM D5470 / Normal Conditions |
Packaging & Storage
- Standard Packaging: 1 kg per container
- Customized Packaging: Other packaging sizes may be arranged according to customer requirements
- Appearance: White grease-like paste
- Storage: Keep sealed in a cool, dry environment
- Shelf Life: 1 year under recommended storage conditions
- Transportation: Non-dangerous goods; transport as general chemicals according to the TDS
Application & Handling Guidelines
- Ensure the application surfaces are clean and dry before applying TG-35.
- Apply the thermal grease to the interface between the heat source and heat sink.
- Keep unused material tightly sealed before returning it to storage.
- Conduct application testing to confirm suitability for the intended assembly.
Looking for a Reliable Thermal Grease Solution?
OPUTE TG-35 provides a 3.5 W/m·K class thermal grease solution for LED lighting and industrial electronics. Contact us for technical specifications, sample inquiries, packaging options and quotation support.
Request a QuoteNote: Technical values are based on the OPUTE TG-35 Technical Data Sheet (Revision A/0, April 8, 2026). The information is provided for reference. Customers should conduct appropriate testing to confirm suitability for their specific applications.
