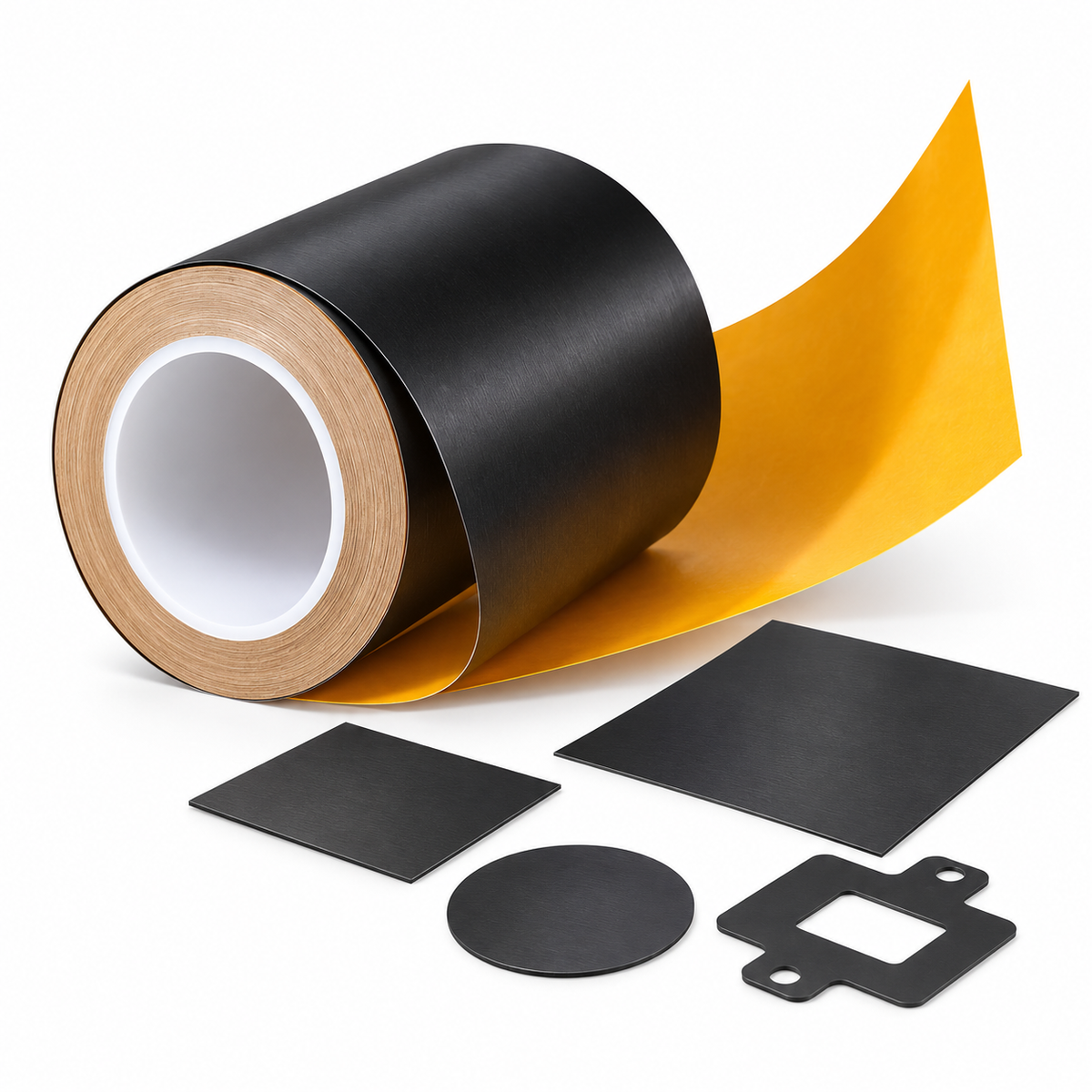

OPUTE Graphite Thermal Sheet
Ultra-Thin Graphite Heat Spreader | Custom Die-Cut Shapes
Graphite thermal sheets are engineered to spread concentrated heat across a larger surface area in space-constrained electronics. The graphite layer provides high in-plane thermal conductivity, while optional adhesive and protective film constructions support convenient assembly.
Key Features & Benefits
- Designed for lateral heat spreading in thin electronic assemblies
- Flexible integration into space-constrained product designs
- Available in multiple grades and constructions
- Custom die-cutting and size options for production assembly
Typical Applications
- Smartphones, tablets and ultra-thin laptops
- LED lighting and flat-panel displays
- IC, CPU and MOSFET heat spreading
- Telecommunications and compact electronics
Technical Specifications
| Grade | DC-038 | DC-068 |
|---|---|---|
| Appearance | Dark gray | Dark gray |
| Density | 1.8 g/cm³ | 1.8 g/cm³ |
| Composite thickness (incl. film/adhesive) | 0.10–0.65 mm | 0.10–2.50 mm |
| In-plane thermal conductivity | 300–700 W/m·K | 300–700 W/m·K |
| Through-thickness thermal conductivity | 10 W/m·K | 6 W/m·K |
| Electrical conductivity | 2 × 10⁶ S/m | 2 × 10⁶ S/m |
| Temperature range stated for graphite material | −55 to 400°C | −55 to 400°C |
Values are typical or reported supplier data and may vary by grade, laminate construction and test method.
Available Sizes & Customization
OPUTE supports application-specific dimensions, sheets, rolls and precision die-cut parts, subject to material grade and production feasibility. Contact us with your required thickness, dimensions, adhesive configuration and annual demand.
Request a Quote or Sample
Contact OPUTE to discuss material selection, sample availability, custom die-cutting and technical documentation.
